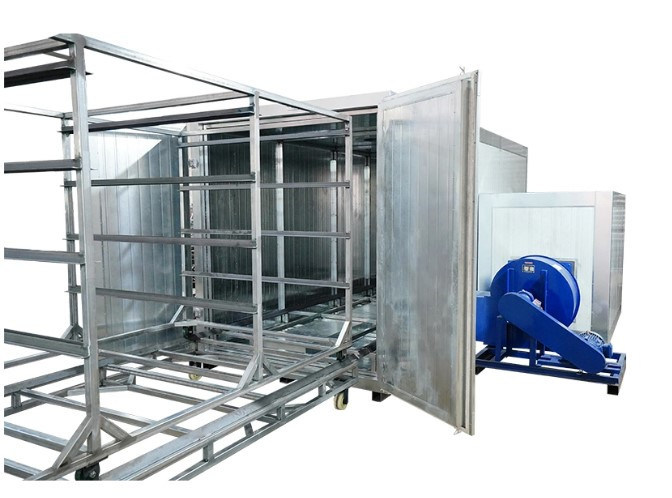

LPG/Gas Electrostatic Powder Coating Oven With Rail System
  • LPG/Gas Electrostatic Powder Coating Oven With Rail System

LPG/Gas Electrostatic Powder Coating Oven With Rail System

Place of Origin CHINA
Brand Name OEM
Certification CE ISO
Product Details
Product Name:
LPG Powder Coating Oven
Required Electrical Power:
380V/50HZ
Pressure Of Pneumatic Actuator:
0.6MPa
Temperature Control Range:
100-250C
Chain Speed:
1.0~2.0m/min (adjustable)
Llumination:
>400Lx
System Chamber Measurement:
25000×1600×2000mm
Maximum Output Current:
200A
High Light:

Gas Electrostatic Powder Coating Oven

,

Electrostatic Powder Coating Oven With Rail System

,

LPG Electrostatic Powder Coating Oven

Product Description
LPG/Gas Electrostatic Powder Coating Oven For Sale With Rail System



Product Application

1. powder coating machine factory.
2. Energy type flexible powder coating equipment .
3. powder coating furnace manufacture veteran.
4. Best quality curing conveyor oven.
5. Professional design powder coating oven, size customize.
6. Heating by Gas/ Diesel/ Electric optional.

The specifications you need to tell us:

1. The size of workpiece,especially the max size
2. The max weight of the workpiece
3. Is there any requirements about the suspension of the workpiece?
4. The material of the workpiece
5. The anticipative output for the biggest size of the orkpiece(how many pcs in 8 hours)
6. The length,width and height of the factory available for the powder coating line
7. The heating power:Liquefied Petroleum Gas, Liquefied natural gas,diesel,or electric?
8. Do you need to change colors every day? How many colors do you have in total?
9. Do you need automatic painting or manual painting?
10. Do you need pre-treatment process? If you do,you like spray pre-treatment or bath pre-treatment?
11. The local electricity conditions(_V/_Phase/_Hz)
12. Do you have any special requiremnts about the package?


Dust blowing system:
The automatic dust blowing system uses compressed air to blow dust, and uses centrifugal fan to remove the dust outdoors:
Technology parameters:
1. System chamber measurement:25000×1600×2000mm
2. Power:380V/50HZ
3. High voltage generator,power 220V,output voltage is 0~100 KV, and the maximum output current is 200A
4. Powder recycling mode is filter pulse recovery
5. Pressure of pneumatic actuator:0.6MPa
6. Maximum storage capacity of powder feeding barrel 60KG
7. Drying channel specification 13000×2300×2200mm
8. Temperature control range: 100-250C
9. Hanging conveying mode
10. Chain speed:1.0~2.0m/min (adjustable)

Indoor environmental requirements during spraying:
1. Normal temperature
2. Wind speed: 0.4 ~ 0.6m/s
3. llumination: >400Lx
4. Recovery rate of powder: >95%
5. Noise: less than 80db

System configuration:
Automatic powder spraying device 2 sets
Automatic spraying station 2 sets
Filter cartridge recovery system 2 sets
Heating chamber 1 set
Fuel furnace 1 set
Overhead chain conveyor 1 set
Electric control system 1 set
Integrated sieve feeding powder bucket 5 sets


What Service Do We Provide?

Pre-sales Service: Customized design of the overall production line scheme according to customer site, environment, output, budget, and product requirements
On-sale Service: Tracking the manufacturing progress of the whole line of equipment, quality control, product proofing and trial production
After-Sales Service: Equipment installation, testing, training, project acceptance
Maintenance Service: Regular inspection and maintenance of the entire line, providing genuine accessories, 24-hour online service





FAQ
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.

Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.

Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

We need to know following information to quote you correct machines:
1. Technical Drawing of the cylinders you want to make?
2. What size of cylinder you want to produce?(such as 6kg, 12kg)
3. What diameter and thickness of the cylinder you want to make?
4. Are you new in this area or you already have some machines in the workshop?
5. Capacity you require, i.e. how many pieces and sizes you want to make per day?
