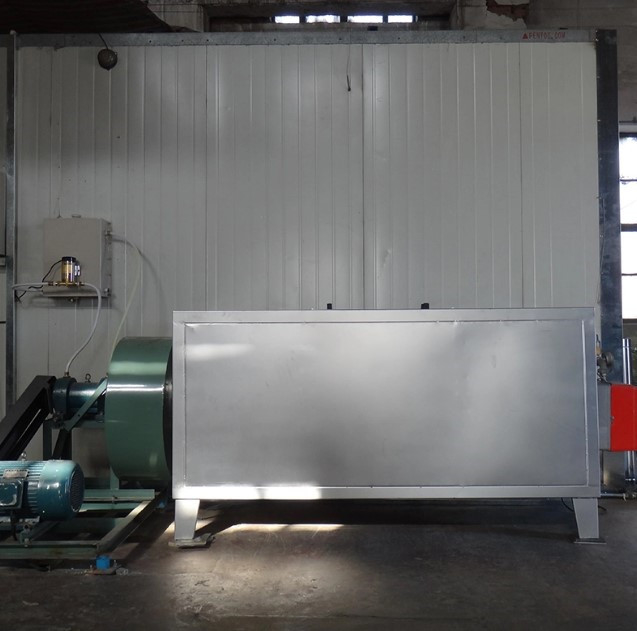

100-250C 0.6MPa LPG Powder Coating Oven For Metal Coating
  • 100-250C 0.6MPa LPG Powder Coating Oven For Metal Coating

100-250C 0.6MPa LPG Powder Coating Oven For Metal Coating

Place of Origin CHINA
Brand Name OEM
Certification CE ISO
Product Details
Product Name:
LPG Powder Coating Oven
Required Electrical Power:
Pressure Of Pneumatic Actuator:
Temperature Control Range:
System Chamber Measurement:
High Light:

Metal Coating LPG Powder Coating Oven


0.6MPa LPG Powder Coating Oven


100-250C LPG Powder Coating Oven

Product Description
0.6MPa LPG Heating Powder Coating Drying Oven For Metal Coating

Gas oven gas oven product introduction

1. The industrial gas oven is an indirect heating method to generate hot air, so that the air in the oven and the air in the combustion chamber are independent, ensuring the cleanliness of the circulating hot air, and avoiding the pollution of the workpiece in the oven;

2. In order to achieve good heat transfer efficiency, the internal (external) heat exchanger adopts a three-pass design, the return is a corrugated combustion chamber furnace, and the second return smoke pipe is placed above the heat exchanger, so that the heat exchange efficiency can reach 65% or more;

3. Large-capacity hot air forced convection circulation, high heat exchange efficiency, uniform temperature in the oven;

Dust blowing system:
The automatic dust blowing system uses compressed air to blow dust, and uses centrifugal fan to remove the dust outdoors:
Technology parameters:
1. System chamber measurement:25000×1600×2000mm
2. Power:380V/50HZ
3. High voltage generator,power 220V,output voltage is 0~100 KV, and the maximum output current is 200A
4. Powder recycling mode is filter pulse recovery
5. Pressure of pneumatic actuator:0.6MPa
6. Maximum storage capacity of powder feeding barrel 60KG
7. Drying channel specification 13000×2300×2200mm
8. Temperature control range: 100-250C
9. Hanging conveying mode
10. Chain speed:1.0~2.0m/min (adjustable)

Indoor environmental requirements during spraying:
1. Normal temperature
2. Wind speed: 0.4 ~ 0.6m/s
3. llumination: >400Lx
4. Recovery rate of powder: >95%
5. Noise: less than 80db

System configuration:
Automatic powder spraying device 2 sets
Automatic spraying station 2 sets
Filter cartridge recovery system 2 sets
Heating chamber 1 set
Fuel furnace 1 set
Overhead chain conveyor 1 set
Electric control system 1 set
Integrated sieve feeding powder bucket 5 sets

What Service Do We Provide?

Pre-sales Service: Customized design of the overall production line scheme according to customer site, environment, output, budget, and product requirements
On-sale Service: Tracking the manufacturing progress of the whole line of equipment, quality control, product proofing and trial production
After-Sales Service: Equipment installation, testing, training, project acceptance
Maintenance Service: Regular inspection and maintenance of the entire line, providing genuine accessories, 24-hour online service



Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.

Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.

Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

We need to know following information to quote you correct machines:
1. Technical Drawing of the cylinders you want to make?
2. What size of cylinder you want to produce?(such as 6kg, 12kg)
3. What diameter and thickness of the cylinder you want to make?
4. Are you new in this area or you already have some machines in the workshop?
5. Capacity you require, i.e. how many pieces and sizes you want to make per day?
