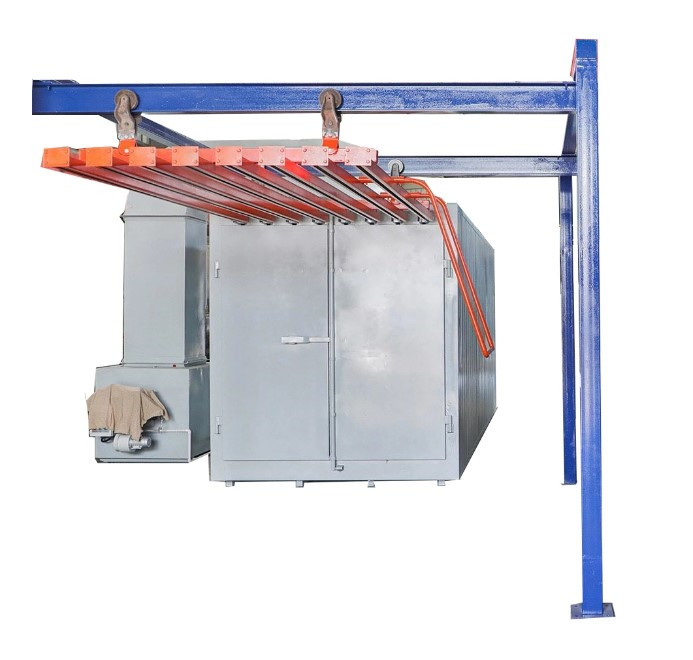

100-250C LPG Straight Tunnel Powder Coating Oven For Powder Coating Line



Whether electrical, gas or diesel fired. Whether batch type or conveyorized tunnel type. Designed and built specially for Powder & Liquid curing purposes assuring you of low power consumption with uniform temperature throughout the working space in the oven.
Melting & Curing constitutes a highly critical phase of the powder coating process. The curing schedules recommended by the powder or liquid supplier must be strictly followed, if good adhesion & corrosion resistance is to be achieved. While powder melts at approx.100°C, curing requires higher temperatures usually between 180°C to 200°C.If the curing is inadequate, the quality will be brittle and flake-off easily. If the powder coat is exposed to harsh heat its colour may change.



Powder coating oven Construction

Welded or modular construction with high quality M.S Sheet
Hot air circulating blower for uniform heat
High quality insulation (Glass/mineral wool) to eliminate heat loss
Electrical,gas& diesel fired (heat exchanger)
Digital temperature controller with auto on/off or manual
Asbestos gasketing, flap sliding doors
Perfect locking arrangement and heat resistant paint(in side)



Dust blowing system:
The automatic dust blowing system uses compressed air to blow dust, and uses centrifugal fan to remove the dust outdoors:
Technology parameters:
1. System chamber measurement:25000×1600×2000mm
2. Power:380V/50HZ
3. High voltage generator,power 220V,output voltage is 0~100 KV, and the maximum output current is 200A
4. Powder recycling mode is filter pulse recovery
5. Pressure of pneumatic actuator:0.6MPa
6. Maximum storage capacity of powder feeding barrel 60KG
7. Drying channel specification 13000×2300×2200mm
8. Temperature control range: 100-250C
9. Hanging conveying mode
10. Chain speed:1.0～2.0m/min (adjustable)

Indoor environmental requirements during spraying:
1. Normal temperature
2. Wind speed: 0.4 ~ 0.6m/s
3. llumination: >400Lx
4. Recovery rate of powder: >95%
5. Noise: less than 80db

System configuration:
Automatic powder spraying device 2 sets
Automatic spraying station 2 sets
Filter cartridge recovery system 2 sets
Heating chamber 1 set
Fuel furnace 1 set
Overhead chain conveyor 1 set
Electric control system 1 set
Integrated sieve feeding powder bucket 5 sets
