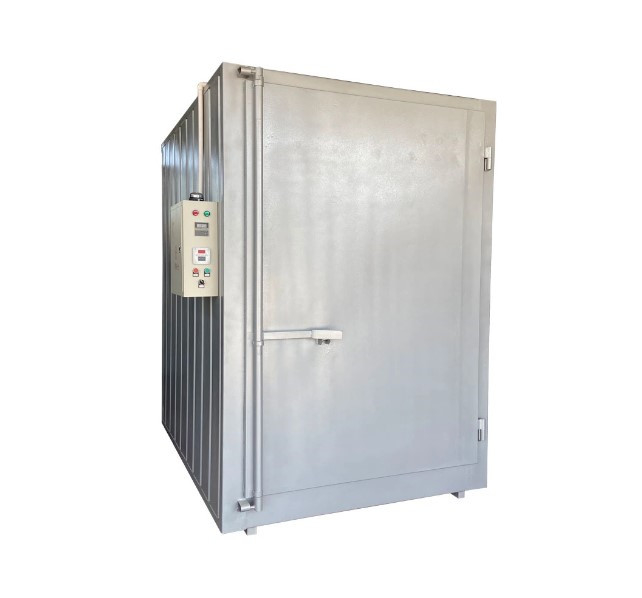

Metal Powder Coating Curing Oven LPG Powder Coating Oven 0.6MPa
  • Metal Powder Coating Curing Oven LPG Powder Coating Oven 0.6MPa

Metal Powder Coating Curing Oven LPG Powder Coating Oven 0.6MPa

Place of Origin CHINA
Brand Name OEM
Certification CE ISO
Product Details
Product Name:
LPG Powder Coating Oven
Pressure Of Pneumatic Actuator:
Temperature Control Range:
Chain Speed:
1.0~2.0m/min (adjustable)
System Chamber Measurement:
High Light:

Metal Powder Coating Curing Oven 0.6MPa


LPG Powder Coating Oven 0.6MPa


LPG Powder Coating Curing Oven

Product Description
Metal Powder Coating Curing Oven With LPG/Gas/Diesel/Electric

High quality and good price and make efficient use of shop space
and are designed for batch powder curing
Suitable for curing many different shape items,for example:aluminum profiles,doors,autoparts etc.



* With good quality Stainless steel 304# the heat exchange device,

100% 100mm thickness rock wool board + +1.5mm Galvanized Steel Inner Wall

* Energy-efficient designs save fuel and get to temperature quickly, as well as maintains a uniform temperature in chamber.

* Good quality Imported Italy Riello Burner, long service life

* Equip with outer trolly and one inside inner cart for you to put the workpieces on,

or equip with tracks on top for you to move workpiece directlly

* Equip with fan motor, PLC controller could allow you to set temperature and holding time as you want.

Dust blowing system:
The automatic dust blowing system uses compressed air to blow dust, and uses centrifugal fan to remove the dust outdoors:
Technology parameters:
1. System chamber measurement:25000×1600×2000mm
2. Power:380V/50HZ
3. High voltage generator,power 220V,output voltage is 0~100 KV, and the maximum output current is 200A
4. Powder recycling mode is filter pulse recovery
5. Pressure of pneumatic actuator:0.6MPa
6. Maximum storage capacity of powder feeding barrel 60KG
7. Drying channel specification 13000×2300×2200mm
8. Temperature control range: 100-250C
9. Hanging conveying mode
10. Chain speed:1.0~2.0m/min (adjustable)

Indoor environmental requirements during spraying:
1. Normal temperature
2. Wind speed: 0.4 ~ 0.6m/s
3. llumination: >400Lx
4. Recovery rate of powder: >95%
5. Noise: less than 80db

System configuration:
Automatic powder spraying device 2 sets
Automatic spraying station 2 sets
Filter cartridge recovery system 2 sets
Heating chamber 1 set
Fuel furnace 1 set
Overhead chain conveyor 1 set
Electric control system 1 set
Integrated sieve feeding powder bucket 5 sets

What Service Do We Provide?

Pre-sales Service: Customized design of the overall production line scheme according to customer site, environment, output, budget, and product requirements
On-sale Service: Tracking the manufacturing progress of the whole line of equipment, quality control, product proofing and trial production
After-Sales Service: Equipment installation, testing, training, project acceptance
Maintenance Service: Regular inspection and maintenance of the entire line, providing genuine accessories, 24-hour online service



Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.

Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.

Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

We need to know following information to quote you correct machines:
1. Technical Drawing of the cylinders you want to make?
2. What size of cylinder you want to produce?(such as 6kg, 12kg)
3. What diameter and thickness of the cylinder you want to make?
4. Are you new in this area or you already have some machines in the workshop?
5. Capacity you require, i.e. how many pieces and sizes you want to make per day?
