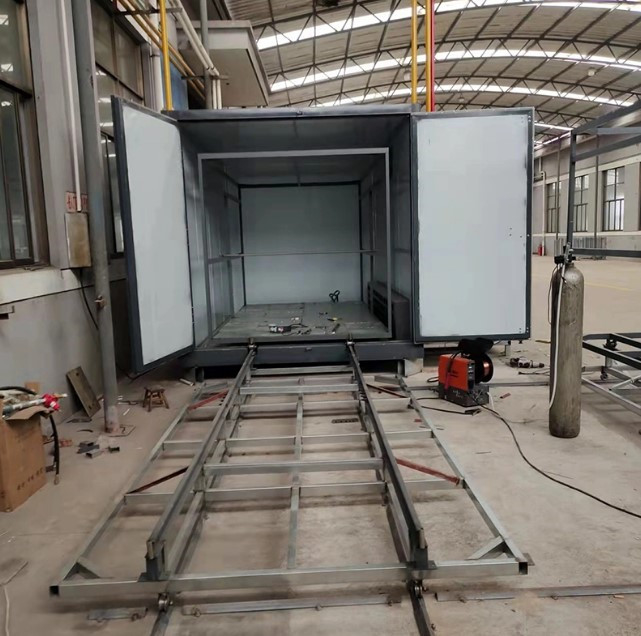

Electrostatic Powder Coating Batch Baking Oven For Gas / LPG Cylinder
  • Electrostatic Powder Coating Batch Baking Oven For Gas / LPG Cylinder

Electrostatic Powder Coating Batch Baking Oven For Gas / LPG Cylinder

Place of Origin CHINA
Brand Name OEM
Certification CE ISO
Product Details
Product Name:
LPG Powder Coating Oven
Required Electrical Power:
Temperature Control Range:
System Chamber Measurement:
Maximum Output Current:
High Light:

Electrostatic Powder Coating Batch Baking Oven


LPG Cylinder Powder Coating Batch Baking Oven


gas Cylinder Powder Coating Batch Baking Oven

Product Description
Electrostatic Powder Coating Batch Baking Oven for LPG Cylinder

An LPG cylinder powder coating oven is a specialized type of oven used to apply a powder coating to LPG cylinders. LPG cylinders are commonly used for domestic and industrial purposes and are typically made of steel or aluminum. Powder coating is a durable and long-lasting finish that provides protection against corrosion, abrasion, and weathering.


The powder coating process involves applying a dry powder coating to the surface of the LPG cylinder and then baking it in an oven to cure the coating. The powder coating oven must be designed to accommodate the size and shape of LPG cylinders and provide consistent, controlled heat for the curing process.


The oven is typically equipped with a conveyor system to move the LPG cylinders through the oven and ensure even heating. The oven may also have multiple heating zones to provide precise temperature control and allow for different curing profiles.

Dust blowing system:
The automatic dust blowing system uses compressed air to blow dust, and uses centrifugal fan to remove the dust outdoors:
Technology parameters:
1. System chamber measurement:25000×1600×2000mm
2. Power:380V/50HZ
3. High voltage generator,power 220V,output voltage is 0~100 KV, and the maximum output current is 200A
4. Powder recycling mode is filter pulse recovery
5. Pressure of pneumatic actuator:0.6MPa
6. Maximum storage capacity of powder feeding barrel 60KG
7. Drying channel specification 13000×2300×2200mm
8. Temperature control range: 100-250C
9. Hanging conveying mode
10. Chain speed:1.0~2.0m/min (adjustable)

Indoor environmental requirements during spraying:
1. Normal temperature
2. Wind speed: 0.4 ~ 0.6m/s
3. llumination: >400Lx
4. Recovery rate of powder: >95%
5. Noise: less than 80db

System configuration:
Automatic powder spraying device 2 sets
Automatic spraying station 2 sets
Filter cartridge recovery system 2 sets
Heating chamber 1 set
Fuel furnace 1 set
Overhead chain conveyor 1 set
Electric control system 1 set
Integrated sieve feeding powder bucket 5 sets

What Service Do We Provide?

Pre-sales Service: Customized design of the overall production line scheme according to customer site, environment, output, budget, and product requirements
On-sale Service: Tracking the manufacturing progress of the whole line of equipment, quality control, product proofing and trial production
After-Sales Service: Equipment installation, testing, training, project acceptance
Maintenance Service: Regular inspection and maintenance of the entire line, providing genuine accessories, 24-hour online service



Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.

Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.

Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

We need to know following information to quote you correct machines:
1. Technical Drawing of the cylinders you want to make?
2. What size of cylinder you want to produce?(such as 6kg, 12kg)
3. What diameter and thickness of the cylinder you want to make?
4. Are you new in this area or you already have some machines in the workshop?
5. Capacity you require, i.e. how many pieces and sizes you want to make per day?
