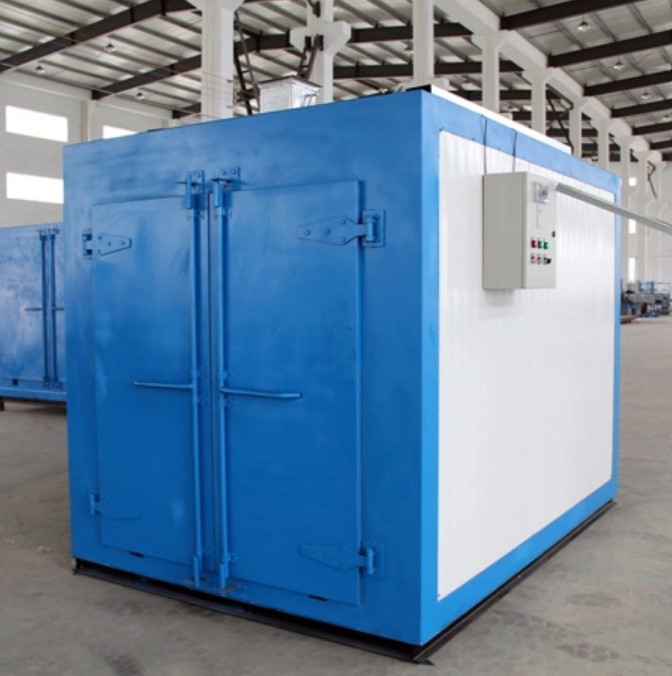

Powder Coating Production Curing Baking Oven With Gas Heating System
  • Powder Coating Production Curing Baking Oven With Gas Heating System

Powder Coating Production Curing Baking Oven With Gas Heating System

Place of Origin CHINA
Brand Name OEM
Certification CE ISO
Product Details
Product Name:
LPG Powder Coating Oven
Required Electrical Power:
380V/50HZ
Pressure Of Pneumatic Actuator:
0.6MPa
Llumination:
>400Lx
System Chamber Measurement:
25000×1600×2000mm
Maximum Output Current:
200A
High Light:

Gas Heating System Curing Baking Oven

,

Powder Coating Production Curing Baking Oven

,

Curing Baking Oven With Gas Heating System

Product Description
Factory Price Powder Coating Production Curing Baking Oven With Gas Heating System






Specifications

Chamber panel

Assembled insulation chamber.

100 mm thickness Rockwool panel; 120kg/m3.

Outside is colorful steel, 0.476mm; inner surface is galvanized steel, 0.476m.

High quality rock wool board, insulation and fireproof, easy to install.

Two hinge doors, and door leaf is also made of 100mm thick rock wool panel, surrounded by 1.5mm galvanized sheet, and is firmly insulated.

Heating system

Italy Diesel Burner

Heat chamber and Heat exchange tubes are made of 304 and 316 stainless steel. With rock wool insulation.

Circulation system

With a high temperature centrifugal fan

With cooling system Cooling circulation fan bearing part.

The fan impeller is made by stainless steel. The fan bearing protection method is liquid circulation cooling protection.

Independently adjustable hot air ducts are arranged inside the chamber to make the temperature in the curing furnace uniform.

The air duct is made by punching and bending with a 0.8mm galvanized sheet.

Guide Rail

One side equip ground rail used for workpiece entry and exit.

Optional

Transfer trolley

Control system

Microcomputer control, dual display digital temperature controller, hot air temperature and oven temperature are automatically controlled.

Fan control, heating control, temperature control, indicator lights for various items, and emergency stop.

Safety device, one set of explosion-proof relief valve, when the pressure inside the curing furnace increases, it will automatically open and discharge the excess air.

Others

Temperature range: RT-230℃





Dust blowing system:
The automatic dust blowing system uses compressed air to blow dust, and uses centrifugal fan to remove the dust outdoors:
Technology parameters:
1. System chamber measurement:25000×1600×2000mm
2. Power:380V/50HZ
3. High voltage generator,power 220V,output voltage is 0~100 KV, and the maximum output current is 200A
4. Powder recycling mode is filter pulse recovery
5. Pressure of pneumatic actuator:0.6MPa
6. Maximum storage capacity of powder feeding barrel 60KG
7. Drying channel specification 13000×2300×2200mm
8. Temperature control range: 100-250C
9. Hanging conveying mode
10. Chain speed:1.0~2.0m/min (adjustable)

Indoor environmental requirements during spraying:
1. Normal temperature
2. Wind speed: 0.4 ~ 0.6m/s
3. llumination: >400Lx
4. Recovery rate of powder: >95%
5. Noise: less than 80db

System configuration:
Automatic powder spraying device 2 sets
Automatic spraying station 2 sets
Filter cartridge recovery system 2 sets
Heating chamber 1 set
Fuel furnace 1 set
Overhead chain conveyor 1 set
Electric control system 1 set
Integrated sieve feeding powder bucket 5 sets


What Service Do We Provide?

Pre-sales Service: Customized design of the overall production line scheme according to customer site, environment, output, budget, and product requirements
On-sale Service: Tracking the manufacturing progress of the whole line of equipment, quality control, product proofing and trial production
After-Sales Service: Equipment installation, testing, training, project acceptance
Maintenance Service: Regular inspection and maintenance of the entire line, providing genuine accessories, 24-hour online service





FAQ
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.

Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.

Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

We need to know following information to quote you correct machines:
1. Technical Drawing of the cylinders you want to make?
2. What size of cylinder you want to produce?(such as 6kg, 12kg)
3. What diameter and thickness of the cylinder you want to make?
4. Are you new in this area or you already have some machines in the workshop?
5. Capacity you require, i.e. how many pieces and sizes you want to make per day?
