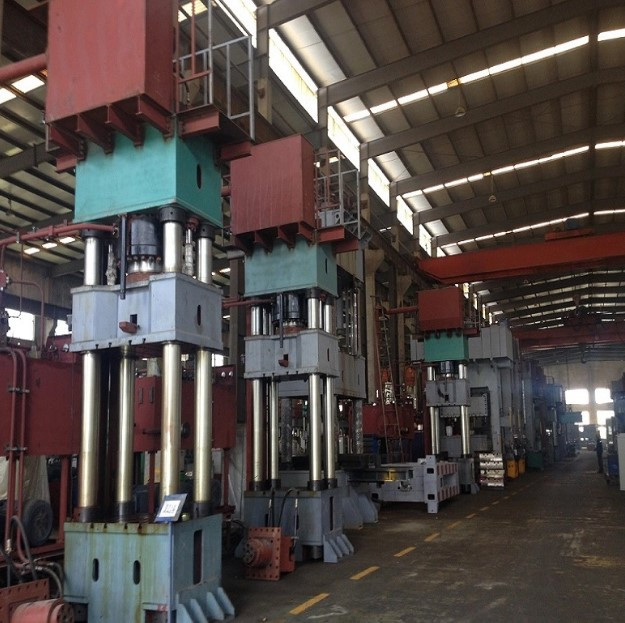

LPG Cylinder Manufacturing Shell Forming Deep Drawing Machine
LPG deep drawing press machines are an important tool in the manufacturing industry for shaping metal sheets into complex shapes. They offer several advantages, including efficiency, precision, and versatility, but also require a high level of skill and maintenance. Proper operation and maintenance of these machines can help to improve the quality and efficiency of the manufacturing process.
General Properties of the Deep Drawing Press
The main characteristics of the hydraulic deep drawing press for LPG Cylinder Production:
Frame type: |
|
H Frame |
Number of Hydraulic Cylinders |
|
1 |
Ram Stroke |
mm |
1.200 |
Daylight |
mm |
1.400 |
Useful bottom table size (L to R) width |
mm |
1.200 |
Useful bottom table size (F to B) depth |
mm |
1.000 |
General Working Speeds of the Hydraulic Press:
Fast approach speed: |
mm/sec |
50 |
Maximum Pressing speed: |
mm/sec |
50 |
Return speed |
mm/sec |
500 |
Working pressure |
bar |
265 |
Drive motor power |
kW |
90 |
Power consumption (approx.) |
kW |
110 |
Deep Drawing Operation Cycle Time:
Deep Drawing Operation: |
8 seconds |
What Service Do We Provide?
FAQ
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.
Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing
We need to know following information to quote you correct machines:
1. Technical Drawing of the cylinders you want to make?
2. What size of cylinder you want to produce?(such as 6kg, 12kg)
3. What diameter and thickness of the cylinder you want to make?
4. Are you new in this area or you already have some machines in the workshop?
5. Capacity you require, i.e. how many pieces and sizes you want to make per day?
