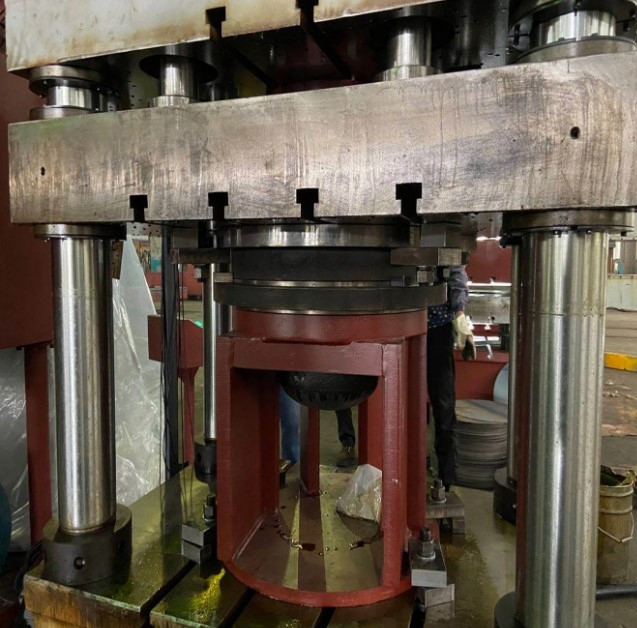

Body Manufacturing Equipment Gas LPG Cylinder Hydraulic Deep Drawing Machine
  • Body Manufacturing Equipment Gas LPG Cylinder Hydraulic Deep Drawing Machine

Body Manufacturing Equipment Gas LPG Cylinder Hydraulic Deep Drawing Machine

Place of Origin CHINA
Brand Name OEM
Certification CE ISO
Product Details
Product Name:
His Mouth Machine
Drive Motor Power:
90Kw
Working Pressure:
265bar
Return Speed:
500 Mm/sec
Frame Type:
H Frame
Number Of Hydraulic Cylinders:
1
High Light:

LPG Cylinder Hydraulic Deep Drawing Machine

,

LPG Cylinder Body Manufacturing Equipment

,

Gas Cylinder Hydraulic Deep Drawing Machine

Product Description

Body Manufacturing Equipment LPG Cylinder Hydraulic Deep Drawing Machine



Materials: LPG deep drawing press machines can be used to shape a wide range of sheet metal materials, including steel, aluminum, copper, and brass. The choice of material depends on the specific application and the desired properties of the finished product, such as strength, conductivity, or corrosion resistance.

Lubrication: Lubrication is essential in the deep drawing process to reduce friction between the metal sheet and the die. Lubricants can also help to prevent wrinkling or tearing of the sheet metal. The choice of lubricant depends on the material and thickness of the sheet, as well as the specific deep drawing process.



General Properties of the Deep Drawing Press

The main characteristics of the hydraulic deep drawing press for LPG Cylinder Production:

Frame type:



H Frame

Number of Hydraulic Cylinders



1

Ram Stroke

mm

1.200

Daylight

mm

1.400

Useful bottom table size (L to R) width

mm

1.200

Useful bottom table size (F to B) depth

mm

1.000



General Working Speeds of the Hydraulic Press:

Fast approach speed:

mm/sec

50

Maximum Pressing speed:

mm/sec

50

Return speed

mm/sec

500

Working pressure

bar

265

Drive motor power

kW

90

Power consumption (approx.)

kW

110



Deep Drawing Operation Cycle Time:

Deep Drawing Operation:

8 seconds





What Service Do We Provide?

Pre-sales Service: Customized design of the overall production line scheme according to customer site, environment, output, budget, and product requirements
On-sale Service: Tracking the manufacturing progress of the whole line of equipment, quality control, product proofing and trial production
After-Sales Service: Equipment installation, testing, training, project acceptance
Maintenance Service: Regular inspection and maintenance of the entire line, providing genuine accessories, 24-hour online service





FAQ
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.

Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.

Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

We need to know following information to quote you correct machines:
1. Technical Drawing of the cylinders you want to make?
2. What size of cylinder you want to produce?(such as 6kg, 12kg)
3. What diameter and thickness of the cylinder you want to make?
4. Are you new in this area or you already have some machines in the workshop?
5. Capacity you require, i.e. how many pieces and sizes you want to make per day?
