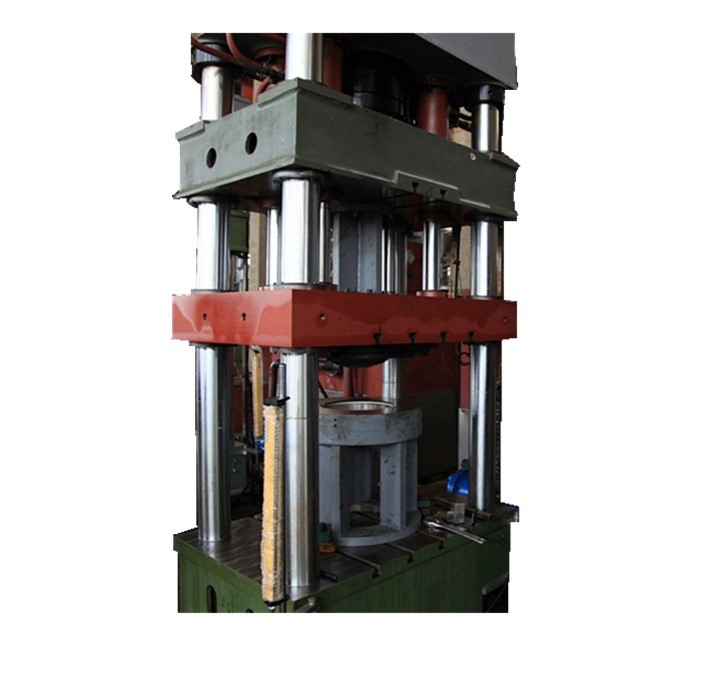

Column Deep Drawing Press Machine For LPG Cylinder Manufacturer
The press machine then applies pressure to the metal sheet, forcing it into the die cavity. The pressure is applied gradually to avoid damaging the sheet metal or the die. The process continues until the desired depth and shape are achieved. After the deep drawing process is complete, the finished part is removed from the die and any excess material is trimmed off.
LPG deep drawing press machines offer several advantages over other types of press machines. They are efficient, precise, and can be used to create complex shapes with a high degree of accuracy. They are also versatile and can be used with a wide range of metals, including aluminum, copper, brass, and stainless steel.
General Properties of the Deep Drawing Press
The main characteristics of the hydraulic deep drawing press for LPG Cylinder Production:
Frame type: |
|
H Frame |
Number of Hydraulic Cylinders |
|
1 |
Ram Stroke |
mm |
1.200 |
Daylight |
mm |
1.400 |
Useful bottom table size (L to R) width |
mm |
1.200 |
Useful bottom table size (F to B) depth |
mm |
1.000 |
General Working Speeds of the Hydraulic Press:
Fast approach speed: |
mm/sec |
50 |
Maximum Pressing speed: |
mm/sec |
50 |
Return speed |
mm/sec |
500 |
Working pressure |
bar |
265 |
Drive motor power |
kW |
90 |
Power consumption (approx.) |
kW |
110 |
Deep Drawing Operation Cycle Time:
Deep Drawing Operation: |
8 seconds |
What Service Do We Provide?
FAQ
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.
Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing
We need to know following information to quote you correct machines:
1. Technical Drawing of the cylinders you want to make?
2. What size of cylinder you want to produce?(such as 6kg, 12kg)
3. What diameter and thickness of the cylinder you want to make?
4. Are you new in this area or you already have some machines in the workshop?
5. Capacity you require, i.e. how many pieces and sizes you want to make per day?
