Heat Treatment Annealing Furnace For LPG Cylinder Production 15000x1200x1000mm
  • Heat Treatment Annealing Furnace For LPG Cylinder Production 15000x1200x1000mm

Heat Treatment Annealing Furnace For LPG Cylinder Production 15000x1200x1000mm

Place of Origin CHINA
Brand Name OEM
Certification CE ISO
Product Details
Product Name:
Annealing Furnace
Work Piece Dimension:
Temperature Of Chamber:
(ltaly)two PCS
LPG Cylinder
High Light:

Heat Treatment Annealing Furnace


LPG Cylinder Production Annealing Furnace


Annealing Furnace 15000x1200x1000mm

Product Description

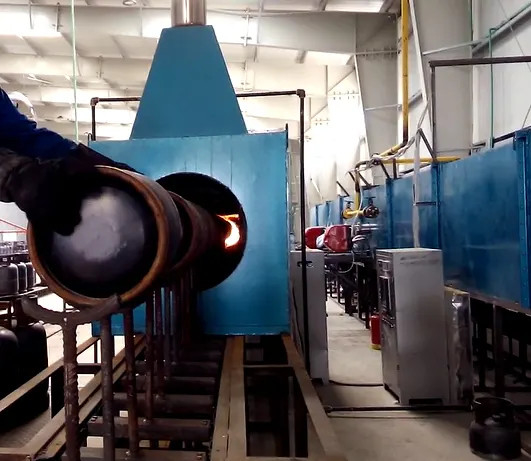

Heat Treatment Annealing Furnace For LPG Cylinder Production Φ310-Φ580mm


 LPG annealing furnace is an important piece of equipment for industrial applications that require heat-treating of materials to improve their strength and durability.

LPG annealing furnaces can come in various sizes and configurations, depending on the specific application and the size of the material being treated. Some larger furnaces can handle materials up to several meters in length and weigh several tons.

The annealing process in an LPG furnace is typically controlled by a computer or programmable logic controller (PLC) that regulates the temperature, time, and other variables. This allows for precise and repeatable annealing cycles, which are critical for achieving consistent results and maintaining product quality.

Work piece dimension φ310-φ580mm
Work efficiency 60PCS per hour
Temperature of chamber ≈650°C
Burner (ltaly)two PCS
The model of decelerate machine BWET131-595-1.1 timing cycloid
Dimension 15000x1200x1000mm
Total weight ≈7000KG




What Service Do We Provide?

Pre-sales Service: Customized design of the overall production line scheme according to customer site, environment, output, budget, and product requirements
On-sale Service: Tracking the manufacturing progress of the whole line of equipment, quality control, product proofing and trial production
After-Sales Service: Equipment installation, testing, training, project acceptance
Maintenance Service: Regular inspection and maintenance of the entire line, providing genuine accessories, 24-hour online service



Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.

Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.

Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

We need to know following information to quote you correct machines:
1. Technical Drawing of the cylinders you want to make?
2. What size of cylinder you want to produce?(such as 6kg, 12kg)
3. What diameter and thickness of the cylinder you want to make?
4. Are you new in this area or you already have some machines in the workshop?
5. Capacity you require, i.e. how many pieces and sizes you want to make per day?
