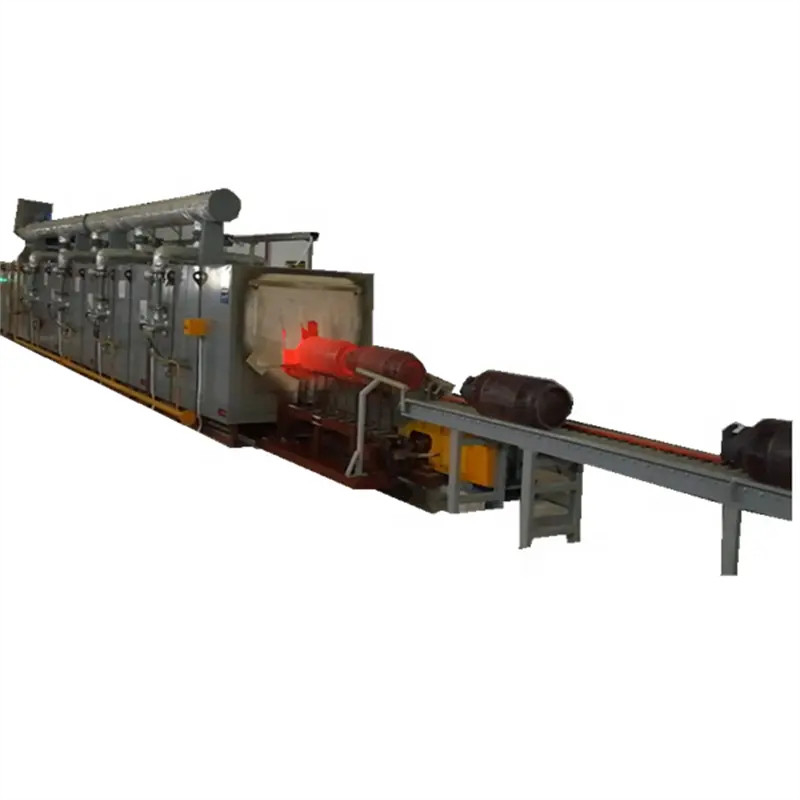

60PCS Per Hour Steel LPG Cylinder Annealing Oven Φ580mm
  • 60PCS Per Hour Steel LPG Cylinder Annealing Oven Φ580mm

60PCS Per Hour Steel LPG Cylinder Annealing Oven Φ580mm

Place of Origin CHINA
Brand Name OEM
Certification CE ISO
Product Details
Product Name:
Annealing Furnace
Work Piece Dimension:
Work Efficiency:
60PCS Per Hour
Total Weight:
LPG Cylinder
High Light:

LPG Cylinder Annealing Oven


Annealing Oven Φ580mm


Steel LPG Cylinder Annealing Oven

Product Description

60PCS Per Hour Steel LPG Cylinder Annealing Furnace Φ310-Φ580mm



Another factor to consider when using an LPG annealing furnace is the type of material being annealed. Different materials have different annealing requirements and may require different temperatures, cooling rates, and atmosphere conditions to achieve optimal results. For example, annealing steel requires a specific heating and cooling rate to achieve the desired microstructure and mechanical properties.


It's also important to properly handle and store LPG fuel to prevent accidents and ensure worker safety. LPG is a flammable and potentially hazardous material, and must be stored and transported in accordance with industry regulations and guidelines. This may include using proper storage containers, labeling, and ventilation systems.


Finally, it's worth noting that annealing is just one step in a larger manufacturing or research process. Other steps, such as forming, machining, or testing, may also be required to produce a final product or to gather data on the material's properties. It's important to carefully plan and coordinate these steps to ensure the overall quality and efficiency of the process.


Work piece dimension φ310-φ580mm
Work efficiency 60PCS per hour
Temperature of chamber ≈650°C
Burner (ltaly)two PCS
The model of decelerate machine BWET131-595-1.1 timing cycloid
Dimension 15000x1200x1000mm
Total weight ≈7000KG




What Service Do We Provide?

Pre-sales Service: Customized design of the overall production line scheme according to customer site, environment, output, budget, and product requirements
On-sale Service: Tracking the manufacturing progress of the whole line of equipment, quality control, product proofing and trial production
After-Sales Service: Equipment installation, testing, training, project acceptance
Maintenance Service: Regular inspection and maintenance of the entire line, providing genuine accessories, 24-hour online service



Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.

Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.

Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

We need to know following information to quote you correct machines:
1. Technical Drawing of the cylinders you want to make?
2. What size of cylinder you want to produce?(such as 6kg, 12kg)
3. What diameter and thickness of the cylinder you want to make?
4. Are you new in this area or you already have some machines in the workshop?
5. Capacity you require, i.e. how many pieces and sizes you want to make per day?
