Trimming And Beading Machine
>
|
| Place of Origin | CHINA |
| Brand Name | OEM |
| Certification | CE ISO |

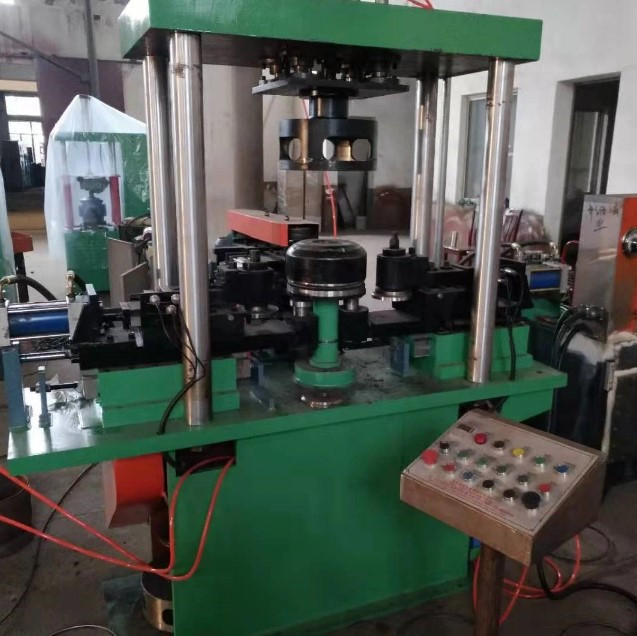

3-50 Kg LPG Gas Cylinder Production Line Trimming, Cleaning, Beading Machine
Additionally, the LPG trimming and beading machine may be designed to operate using different energy sources, including electricity, hydraulic power, or pneumatic power. The choice of energy source can impact the machine's performance, energy consumption, and environmental impact.
It's also worth noting that regular maintenance and cleaning of the machine can help to prevent environmental contamination from oil or grease leaks. Proper disposal of waste materials, such as metal shavings and coolant fluids, is also essential to ensure that they do not pollute the environment.
(Note: According to the customer request, properties will change)
| Max. work pc diameter | 350 mm |
| Max. work pc height | 400 mm |
| Min. work pc height | 200 mm |
| Max. material thickness | 4 mm |
| Spindle speed | 140 rpm |
| Main motor power | 7.5 kW |
| Hydraulic drive motor power | 4 kW |
| Hydraulic pressure | 200 bar |
What Service Do We Provide?
FAQ
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.
Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing
We need to know following information to quote you correct machines:
1. Technical Drawing of the cylinders you want to make?
2. What size of cylinder you want to produce?(such as 6kg, 12kg)
3. What diameter and thickness of the cylinder you want to make?
4. Are you new in this area or you already have some machines in the workshop?
5. Capacity you require, i.e. how many pieces and sizes you want to make per day?
