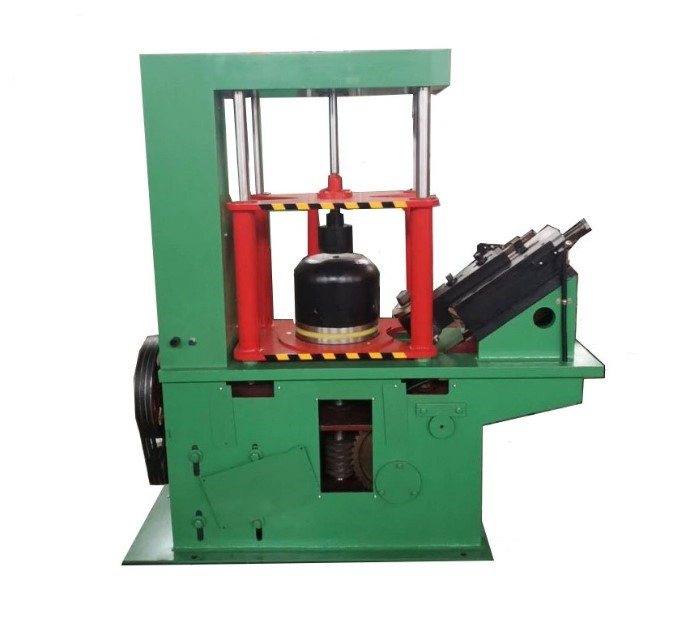

Hydraulic 4kW Trimming And Beading Machine Small LPG Cylinder Production Capacity
  • Hydraulic 4kW Trimming And Beading Machine Small LPG Cylinder Production Capacity

Hydraulic 4kW Trimming And Beading Machine Small LPG Cylinder Production Capacity

Place of Origin CHINA
Brand Name OEM
Certification CE ISO
Product Details
Product Name:
LPG Cylinder Trimming And Beading Machine
Min. Work Pc Height:
200 Mm
Max. Material Thickness:
4 Mm
Spindle Speed:
140 Rpm
Main Motor Power:
7.5 KW
Hydraulic Drive Motor Power:
4kW
High Light:

LPG Cylinder Production Trimming And Beading Machine

,

LPG Cylinder Production Trimming Beading Machine

,

Small LPG Cylinder Trimming Beading Machine

Product Description

Trimming Beading Cleaning Machine For Small LPG Cylinder Production Capacity



During operation, the cylinder is placed on the machine's conveyor belt and moved through the trimming and beading tools. The trimming tool cuts away any excess metal from the cylinder's edges, while the beading tool rolls the edges to create a smooth finish.

Proper maintenance of the machine is essential to ensure that it operates efficiently and safely. This includes regular inspection of the machine's components, lubrication of moving parts, and replacement of worn or damaged parts.


(Note: According to the customer request, properties will change)

Max. work pc diameter 350 mm
Max. work pc height 400 mm
Min. work pc height 200 mm
Max. material thickness 4 mm
Spindle speed 140 rpm
Main motor power 7.5 kW
Hydraulic drive motor power 4 kW
Hydraulic pressure 200 bar





What Service Do We Provide?

Pre-sales Service: Customized design of the overall production line scheme according to customer site, environment, output, budget, and product requirements
On-sale Service: Tracking the manufacturing progress of the whole line of equipment, quality control, product proofing and trial production
After-Sales Service: Equipment installation, testing, training, project acceptance
Maintenance Service: Regular inspection and maintenance of the entire line, providing genuine accessories, 24-hour online service





FAQ
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.

Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.

Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

We need to know following information to quote you correct machines:
1. Technical Drawing of the cylinders you want to make?
2. What size of cylinder you want to produce?(such as 6kg, 12kg)
3. What diameter and thickness of the cylinder you want to make?
4. Are you new in this area or you already have some machines in the workshop?
5. Capacity you require, i.e. how many pieces and sizes you want to make per day?
