Flange Welding Machine LPG Cylinder Production Line 380v 50Hz
  • Flange Welding Machine LPG Cylinder Production Line 380v 50Hz

Flange Welding Machine LPG Cylinder Production Line 380v 50Hz

Place of Origin CHINA
Brand Name OEM
Certification CE ISO
Product Details
Product Name:
Reducing Machine LPG Cylinder Flange Welding Machine
Power:
Mains 380 Volt 50 Hz
System:
One Flux Recovery System With Collecting Trap
Motor:
Infinitely Variable Rotation By DC Motor
Loading And Unloading Of Halves:
Manual By Operator
Welding Power Source:
DC 600
High Light:

Flange Welding LPG Cylinder Production Line

,

LPG Cylinder Production Line 380v 50Hz

,

LPG Cylinder Flange Welding Machine 380v

Product Description

Reducing Machine LPG Cylinder Flange Welding Machine Mains 380 volt 50 Hz



LPG Cylinder Flange Welding Machine is a single-wire submerged arc welding machine with necessary fixture and equipment to hold and rotate the LPG cylinder and control of welding. The features of the LPG Cylinder Flange Welding Machine are:



LPG Cylinder Flange Welding Machine Properties





Composed of welding station and power source
Vertical rotary table to rotate LPG cylinder halves for welding operation
Pneumatic clamping of cylinder halves and the flange
Pneumatic operated positioning device of welding guns
Flux welding (Submerged Arc Welding) by DC 600 ampere
Welding heads with wire feed drive and flux hopper
DC 600 Welding power source with thermostat controlled fan cooling
Mains 380 volt 50 Hz
One flux recovery system with collecting trap
Manual load and unload with automatic welding operation Loading – Automatic clap – Positioning – Welding – Unloading
Infinitely variable rotation by DC motor



What Service Do We Provide?

Pre-sales Service: Customized design of the overall production line scheme according to customer site, environment, output, budget, and product requirements
On-sale Service: Tracking the manufacturing progress of the whole line of equipment, quality control, product proofing and trial production
After-Sales Service: Equipment installation, testing, training, project acceptance
Maintenance Service: Regular inspection and maintenance of the entire line, providing genuine accessories, 24-hour online service



Features 1. 1 or 2 torches are usually built in.2. Multiple torches up to 4-5 also could be integrated into this machine based on qnty. of
welding seam and productivity.
3. Adjustable for various thickness
4. Precision longitudinal track for smooth travel
5. Change size automatically or manually
Applications Our precision Circumferential Lathe Welder are most commonly used in tank production.
* High pressure type solar water heater tank
* Low-pressure type solar water heater tank
* Enamel tank for electrical water heater
* LPG cylinder
* LNG gas station
* Cryoease
* Storage tank
Range of working piece Thickness of working piece: 0.3mm-10mm
Dia. of working piece: 200mm-2500mm
Custom Designed
For any welders we fabricate and install, we can incorporate the controls system necessary. We program and wire electrical
controls such as:
* Programmable Logic Controllers (PLCs)
* Standard Push Button Controls
* Emergency Stop Buttons
* Safety Sensors
* Audiovisual Alarms
* Data Acquisition

We use predominantly Allen-Bradley PLCs with touch-screen or panel view displays but we will incorporate any brand or type of controls our customers specify

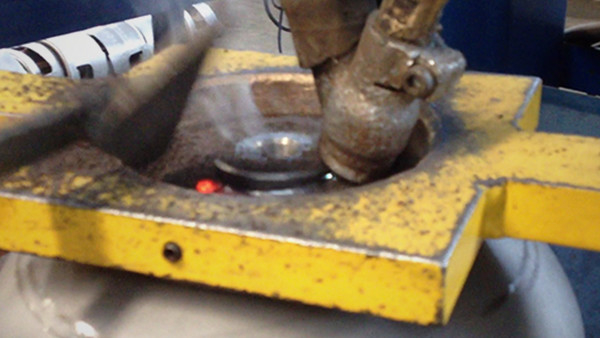

Flange Welding Machine LPG Cylinder Production Line 380v 50Hz 0



FAQ
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.

Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.

Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

We need to know following information to quote you correct machines:
1. Technical Drawing of the cylinders you want to make?
2. What size of cylinder you want to produce?(such as 6kg, 12kg)
3. What diameter and thickness of the cylinder you want to make?
4. Are you new in this area or you already have some machines in the workshop?
5. Capacity you require, i.e. how many pieces and sizes you want to make per day?
