Open Bottle Blanking LPG Cylinder Production Line 1 Times/10s
  • Open Bottle Blanking LPG Cylinder Production Line 1 Times/10s

Open Bottle Blanking LPG Cylinder Production Line 1 Times/10s

Place of Origin CHINA
Brand Name OEM
Certification CE ISO
Product Details
Raw Material Steel Plate Thickness:
2-3mm
Width Of Steel Plate:
≤1250mm
Blanking Period:
1 Times/10s
Nominal Blanking Force:
3150 KNx2
Punching Specification:
φ370~φ630mm
Inner Diameter Of Steel Coil:
450-800mm
High Light:

Open Bottle Blanking LPG Cylinder Production Line

,

LPG open bottle blanking production line

,

1 Times/10s LPG open bottle blanking production line

Product Description

Open Bottle Blanking Production Line Blanking Period 1 Times/10s







An LPG open bottle blanking production line is an industrial process used to manufacture the body of LPG cylinders. The open bottle refers to the shape of the cylinder, which has a wide opening at the top and a narrower base.

The production line typically consists of several machines and processes that work together to manufacture the open bottle blanks. These machines may include a steel coil cutting machine, a blanking press, a trimming machine, and a cleaning machine.

The production process typically begins with the steel coil cutting machine, which cuts the steel coil into the appropriate width and length for the cylinder body. The cut steel sheets are then fed into the blanking press, which punches out the shape of the open bottle blanks from the steel sheets.



LPG (Liquefied Petroleum Gas) cylinder production within the guidelines of the international standards such as ISO 4706,EN 1442 involves several process steps starting from forming to final testing that can be streamlined into the following lines,this is a set of procedures that must be followed by cylinder manufacturers in each country:
1. Blanking
2. Body Forming Production Line
3. Valve Guard Ring Production Line
4. Foot Ring Production Line
5. Valve Neck (Valve Boss or Neck Ring) Production Line
6. Welding,Heating
7. Hydrostatic Testing Line
8. Surface Coating Line
9. Finishing Line with Pneumatic Testing
We can provide a complete set of steel cylinder production solutions, and ensure that the production line costs the least and the production capacity is higher.Our aim is to help more people of regions or countries to use liquefied gas cylinders.


Blanking Production Line
Blanking period:1 times/10s
Nominal blanking force:3150 KNx2
Punching specification: φ370~φ630mm
Availability of steel plate :
1. Raw material steel plate thickness:2-3mm
2. Width of steel plate:≤1250mm
3. Inner diameter of Steel coil:450-800mm
4. Outer diameter of Steel coil: ≤1250mm
5. Weight of Steel coil: ≤15Ton

The equipment adopts the computer optimization design, the mechanical part of high strength, stable operation. The control part adopts digital circuit, premium programmable logic controller,inverter,touch screen. The feeding length is controlled by sensors,which is accurate and reliable. The whole line has a high degree of automation,stable operation,low failure rate,convenient maintenance.

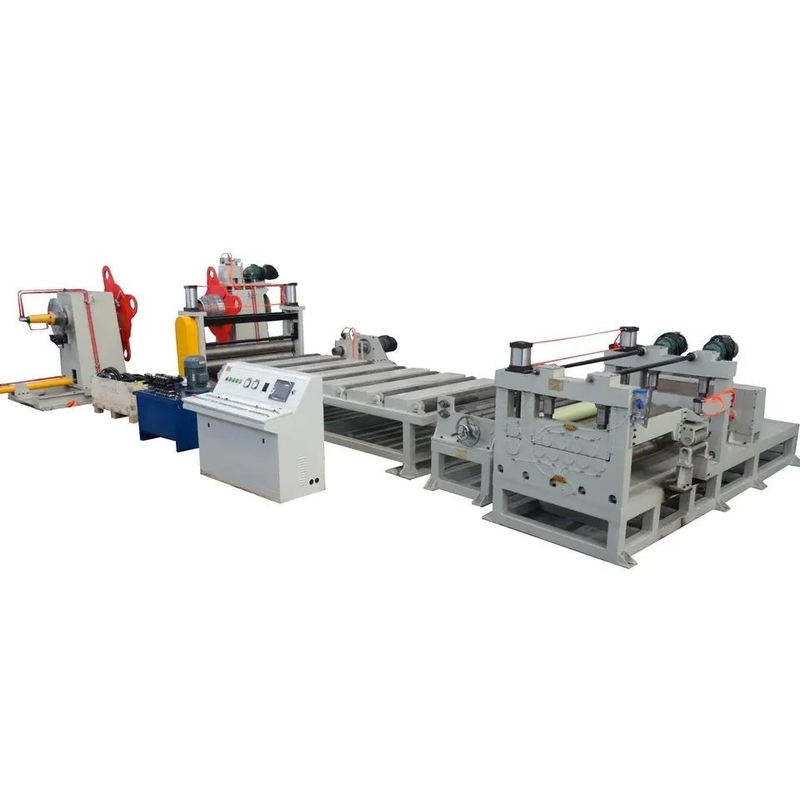

Blanking production line contains decoiler and hydraulic press.
Decoiler equipment features:
The whole blanking production line adopts the computer optimization design, the mechanical part of high strength, stable operation.
The control part adopts digital circuit, premium programmable logic controller,inverter,touch screen.
The feeding length is controlled by sensors,which is accurate and reliable.
The whole line has a high degree of automation,stable operation,low failure rate,convenient maintenance.

Hydraulic press equipment features:
Long service life,simple and convenient operation,high production efficiency.
The machine adopts the computer optimization structure design, the structure is simple, economical and practical.
The machine, electricity and liquid integrated safety device,programmable logic controller,has the advantages of sensitive and reliable work.

Open Bottle Blanking LPG Cylinder Production Line 1 Times/10s 0Open Bottle Blanking LPG Cylinder Production Line 1 Times/10s 1Open Bottle Blanking LPG Cylinder Production Line 1 Times/10s 2Open Bottle Blanking LPG Cylinder Production Line 1 Times/10s 3Open Bottle Blanking LPG Cylinder Production Line 1 Times/10s 4Open Bottle Blanking LPG Cylinder Production Line 1 Times/10s 5

Features 1. 1 or 2 torches are usually built in.2. Multiple torches up to 4-5 also could be integrated into this machine based on qnty. of
welding seam and productivity.
3. Adjustable for various thickness
4. Precision longitudinal track for smooth travel
5. Change size automatically or manually
Applications Our precision Circumferential Lathe Welder are most commonly used in tank production.
* High pressure type solar water heater tank
* Low-pressure type solar water heater tank
* Enamel tank for electrical water heater
* LPG cylinder
* LNG gas station
* Cryoease
* Storage tank
Range of working piece Thickness of working piece: 0.3mm-10mm
Dia. of working piece: 200mm-2500mm
Custom Designed
For any welders we fabricate and install, we can incorporate the controls system necessary. We program and wire electrical
controls such as:
* Programmable Logic Controllers (PLCs)
* Standard Push Button Controls
* Emergency Stop Buttons
* Safety Sensors
* Audiovisual Alarms
* Data Acquisition

We use predominantly Allen-Bradley PLCs with touch-screen or panel view displays but we will incorporate any brand or type of controls our customers specify

Open Bottle Blanking LPG Cylinder Production Line 1 Times/10s 6



What Service Do We Provide?

Pre-sales Service: Customized design of the overall production line scheme according to customer site, environment, output, budget, and product requirements
On-sale Service: Tracking the manufacturing progress of the whole line of equipment, quality control, product proofing and trial production
After-Sales Service: Equipment installation, testing, training, project acceptance
Maintenance Service: Regular inspection and maintenance of the entire line, providing genuine accessories, 24-hour online service





FAQ
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.

Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.

Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

We need to know following information to quote you correct machines:
1. Technical Drawing of the cylinders you want to make?
2. What size of cylinder you want to produce?(such as 6kg, 12kg)
3. What diameter and thickness of the cylinder you want to make?
4. Are you new in this area or you already have some machines in the workshop?
5. Capacity you require, i.e. how many pieces and sizes you want to make per day?
