LPG Cylinder Production Line
>
|
| Place of Origin | made in china |
| Brand Name | Metal Drum Making Machine |

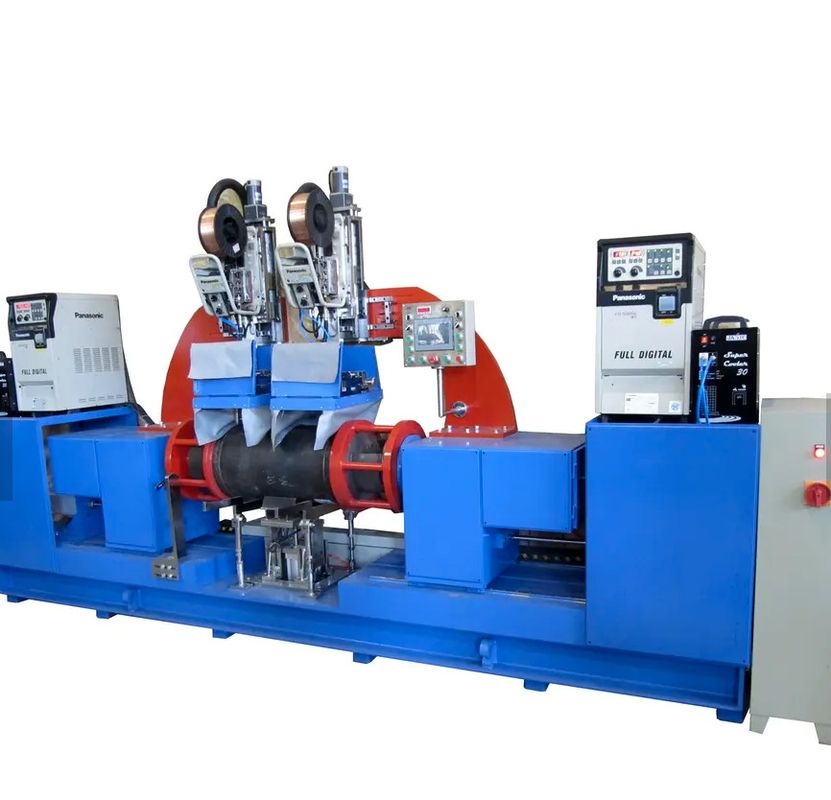

This LPG Cylinder Production Line is designed to produce high-quality LPG Cylinders with precision and speed. The production line adopts advanced PLC control system, and is composed of multi-functional units, such as uncoiling, straightening, shearing, bending, seam welding, roll forming, welding, and end facing. It also has the functions of flaring, trimming, and beveling.
The thickness of cylinders can be adjusted from 2mm to 6mm, and the overall size of the line is 20m x 10m x 5m. It has a total power of 50KW and includes a one-year warranty. The production line is designed for continuous and automatic production, allowing for high production efficiency and quality control.
The LPG Cylinder Production Line is suitable for producing LPG Cylinders of various sizes and shapes. It is easy to operate and maintain, and is ideal for high volume production.
| Parameter | Description |
|---|---|
| Raw Material | Steel Plate |
| Product Name | LPG Cylinder Production Line |
| Control System | PLC Control |
| Welding Method | TIG/MIG Welding |
| Power Supply | 380V/50Hz |
| Cylinder Length | 400-1000mm |
| Cylinder Diameter | 100-400mm |
| Dimension | 20m X 10m X 5m |
| Cylinder Thickness | 2-6mm |
| Warranty | 1 Year |
The LPG Cylinder Production Line from Metal Drum Making Machine, made in china, is designed for the production of Liquefied Petroleum Gas (LPG) cylinders with diameter ranging from 100-400mm. It is powered by 380V/50Hz and has a total power of 50KW. It is a reliable and efficient production line that is covered by a one year warranty. It is suitable for producing LPG cylinders for domestic and industrial applications and can be used for a variety of sizes and shapes.
This production line features a series of automated processes such as pressing, welding, testing, and inspection. It is capable of producing high quality LPG cylinders with an output rate of up to 400 cylinders per hour. The production line is equipped with advanced safety systems to ensure the safety of operators. It is also equipped with a variety of automated control systems that help to ensure the quality and consistency of the LPG cylinders.
The LPG Cylinder Production Line from Metal Drum Making Machine is a reliable and efficient choice for the production of LPG cylinders. It can be used for a variety of applications and is backed by a one year warranty. It is capable of producing high quality LPG cylinders with an output rate of up to 400 cylinders per hour and is equipped with advanced safety systems to ensure the safety of operators.
We offer the most ideal solution for your LPG cylinder production line. Our product features a brand name of Metal Drum Making Machine, is made in China, and has a production capacity of 20-30 cylinders per minute. The size of the production line is 20m X 10m X 5m and it uses TIG/MIG welding for raw material - steel plate. Our machine can produce cylinders with thickness ranging from 2-6mm.
Packaging and Shipping for LPG Cylinder Production Line:
The LPG cylinders manufactured in the production line will be packed using protective materials and securely sealed. The packed cylinders will then be loaded on the shipping vehicle, where they will be transported to their destination. The shipping vehicle will be equipped with necessary safety measures to ensure the cylinders reach their destination safely.
