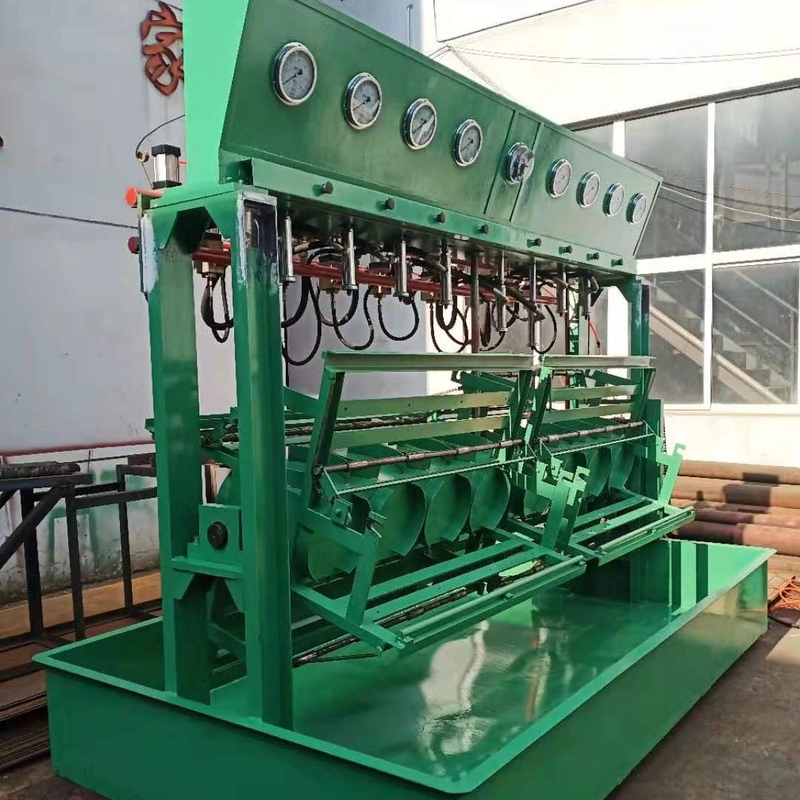

Gas Cylinder Hydrostatic Testing Machine LPG Gas Cylinder Testing Equipment
An LPG hydrostatic cylinder testing machine is a specialized piece of equipment used to test the integrity and safety of liquefied petroleum gas (LPG) cylinders. The machine works by subjecting the cylinder to high pressure using water to determine whether it can safely contain the gas without leaking or rupturing.
During the hydrostatic test, the cylinder is filled with water, and a pressure gauge is attached to measure the pressure inside the cylinder. The cylinder is then pressurized to a predetermined level, and the pressure is held for a set amount of time to check for leaks or deformation. If the cylinder passes the test, it is considered safe for use. However, if the cylinder fails the test, it must be taken out of service and either repaired or replaced.
Properties of the Hydrostatic Testing Unit
(Note: According to the customer request, properties will change)
Machine Type | Hydrostatic Testing |
Machine Operation | Semi-Automatic |
Test Method | Visual observation of pressured water coming out of leakages of the cylinder |
Machine Structure | Tilting Steel Constructed Frame |
Test Cylinder Type | Domestic |
Number of Test Posts in Frame | 10 (adjustable) |
High Pressure Testing Time | 30-120 seconds (adjustable) |
What Service Do We Provide?
FAQ
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.
Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.
Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing
We need to know following information to quote you correct machines:
1. Technical Drawing of the cylinders you want to make?
2. What size of cylinder you want to produce?(such as 6kg, 12kg)
3. What diameter and thickness of the cylinder you want to make?
4. Are you new in this area or you already have some machines in the workshop?
5. Capacity you require, i.e. how many pieces and sizes you want to make per day?
