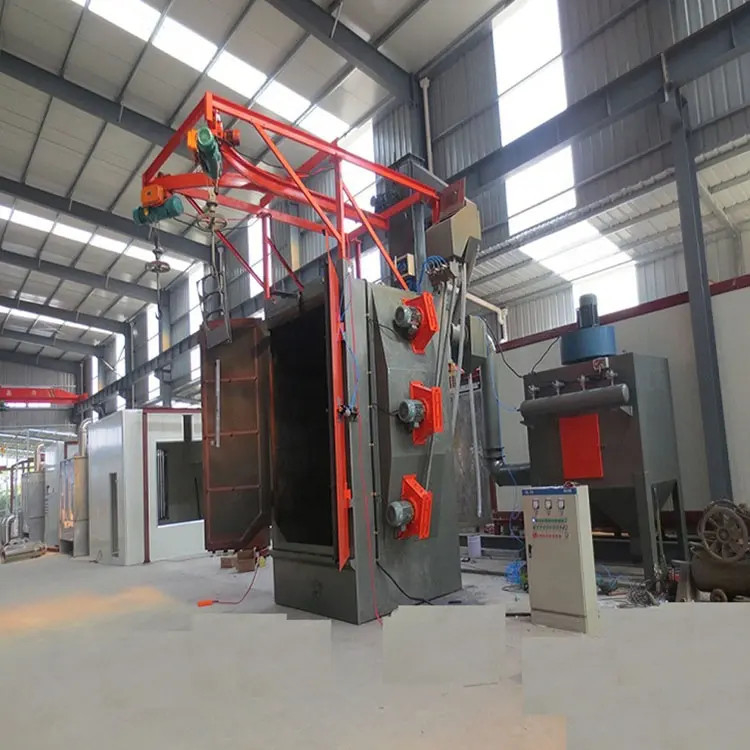

15kg Liquefied Petroleum Gas LPG Cylinder Manufacturing Line Shot Blasting Machine
  • 15kg Liquefied Petroleum Gas LPG Cylinder Manufacturing Line Shot Blasting Machine

15kg Liquefied Petroleum Gas LPG Cylinder Manufacturing Line Shot Blasting Machine

Place of Origin CHINA
Brand Name OEM
Certification CE ISO
Product Details
Product Name:
Shot Blasting Machine
Surface Cleanness Quality:
Bsa2.5
Number Of Turbines:
8
Number Of Pallets In Turbines:
6
Turbine Diameter:
320 Mm
Machine Outer Width:
4500mm
Input LPG Cylinder:
Heat Treated Cylinders
Nominal Capacity:
500 Cylinders Per Hour
High Light:

15kg LPG Cylinder Manufacturing Line

,

LPG Cylinder Manufacturing Line Shot Blasting Machine

,

Petroleum Gas LPG Cylinder Manufacturing Line

Product Description

15kg Liquefied Petroleum Gas LPG Cylinder Manufacturing Line Shot Blasting Machine





Shot blasting machines can be used for both internal and external cleaning of LPG cylinders. Internal cleaning is usually done using a specialized nozzle that is inserted into the cylinder, while external cleaning is done using a rotating table or conveyor system that moves the cylinders through the blast chamber.

Shot blasting is a versatile surface preparation method that can be used on a wide range of materials, including steel, aluminum, plastic, and composite materials.



The main characteristics of the Shot Blasting Machine are:
(Note: According to the customer request, properties will change)

Machine Type Shot Blasting Machine
Main Structure Reinforced steel structure with high grade steel plates in main cabinet
Input LPG Cylinder Heat treated cylinders
Nominal Capacity 500 Cylinders per hour
Surface Cleanness Quality Bsa2.5
Number of Turbines 8
Number of pallets in turbines 6
Turbine Diameter 320 mm
Machine Outer Width 4500 mm
Machine Outer Length 9550 mm
Machine Height 5400 mm



Separator:

Elevator:

Lower Cabin:

Main Cabin:

Dust Filtering Unit:

Control Panel:

Blasting Chamber

Lower cabin with helical mover

LPG Cylinder Rotation and Moving System

Elevator

Sift & Separator

Dry Filter Unit (dust collector)

Shot medium, coarse particles and dust are separate

Driven by motor, redactor and chain drive

Mechanical operation of shifts

Motor redactor chain driven buckets

Made out of 4 mm thick steel

Completely covered bearings

Made out of steel construction

Motor redactor chain driven helical carriage

Blasting medium is led towards elevator by helical carriage

Three turbines hanging on the ceiling

Wear resistant rubber screens at entrance and exit

Rotation of cylinders

Transfer of cylinders from input to output

Filtering of dust

Centrifugal filtering additional

Water filter to convert dust to mud

Provides control buttons and indicators

High quality electric components

Monitoring of turbine capacities

Pneumatic control of turbine outputs



What Service Do We Provide?

Pre-sales Service: Customized design of the overall production line scheme according to customer site, environment, output, budget, and product requirements
On-sale Service: Tracking the manufacturing progress of the whole line of equipment, quality control, product proofing and trial production
After-Sales Service: Equipment installation, testing, training, project acceptance
Maintenance Service: Regular inspection and maintenance of the entire line, providing genuine accessories, 24-hour online service





FAQ
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.

Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.

Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

We need to know following information to quote you correct machines:
1. Technical Drawing of the cylinders you want to make?
2. What size of cylinder you want to produce?(such as 6kg, 12kg)
3. What diameter and thickness of the cylinder you want to make?
4. Are you new in this area or you already have some machines in the workshop?
5. Capacity you require, i.e. how many pieces and sizes you want to make per day?
