Fabricated Steel Welding Shield LPG Cylinder Welding Line Wire Diameter 5.6mm
  • Fabricated Steel Welding Shield LPG Cylinder Welding Line Wire Diameter 5.6mm

Fabricated Steel Welding Shield LPG Cylinder Welding Line Wire Diameter 5.6mm

Place of Origin CHINA
Brand Name OEM
Certification CE ISO
Product Details
Product Name:
Welding Shield LPG Cylinder Welding Line
Wire Diameter Max.:
Weld Automat Working Style:
Rotating Halves Stationary Welding Head
Welding Automat Structure:
Fabricated Steel
LPG Cylinder Halves Position In Weld Automat:
Loading And Unloading Of Halves:
Manual By Operator
High Light:

Welding Shield LPG Cylinder Welding Line


LPG Cylinder Welding Line Diameter 5.6mm


Fabricated Steel LPG Cylinder Welding Line

Product Description

Welding Shield LPG Cylinder Welding Line Wire Diameter Max. 5.6 Mm
A welding shield is an essential component of an LPG cylinder welding line. The welding shield is a protective barrier that is used to protect the welder and other personnel from the intense heat and bright light produced during the welding process.
In an LPG cylinder welding line, the welding shield is typically positioned around the welding station, creating a safe zone for the welder to work in. The shield may be made from a variety of materials, including flame-resistant fabrics, metal sheets, or glass.
The welding shield serves several important functions in an LPG cylinder welding line. First, it protects the welder from the intense heat and radiation produced during the welding process, reducing the risk of burns and other injuries. It also helps to contain the bright light produced during welding, reducing the risk of eye damage and other vision problems.
LPG Cylinder Body Welding Machine

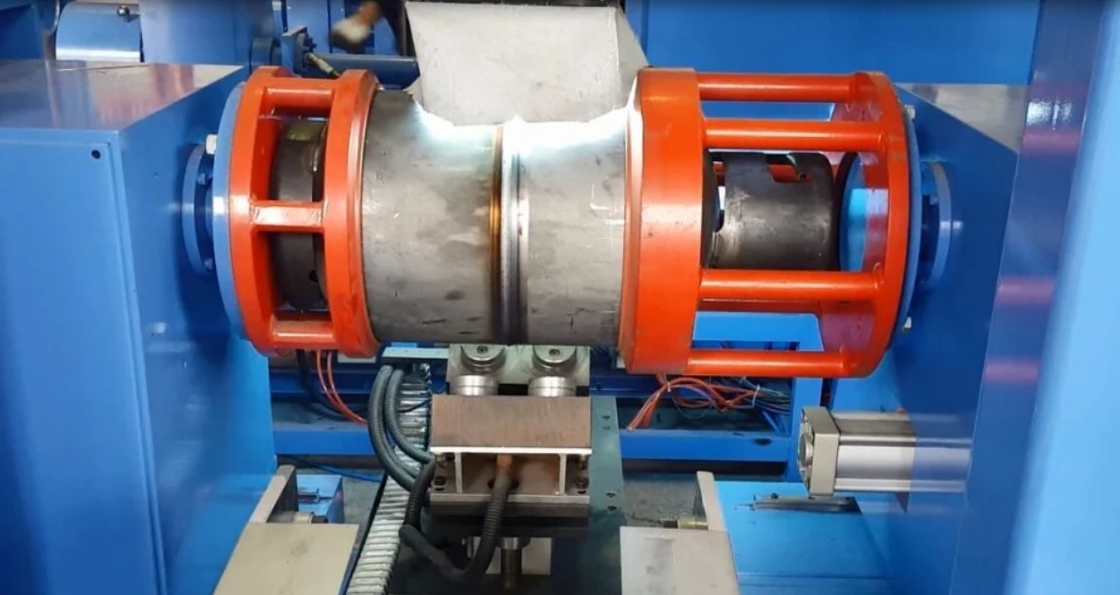

The LPG Cylinder Body Welding machine is a submerged arc welding (SAW) machine composed of welding automat and welding power pack. The welding automat holds the upper and lower cylinder halves horizontally and rotates them for the fixed welding head to weld. The features of the LPG Cylinder Body Welding Machine are:

LPG Cylinder Body Welding Machine Properties

Welding MethodSubmerged Arc Welding (SAW)
Welding Automat StructureFabricated Steel
LPG cylinder halves position in Weld AutomatHorizontal
Weld automat working styleRotating halves stationary welding head
Loading and unloading of halvesManual by operator
Welding OperationAutomatic by operator initiation
Halves clamping meansPneumatic cylinder
Welding Head Linear MovementYes
Halves rotation byElectric motor drive
Rotation SpeedElectronically Adjustable
Overlap of Weld SeamAdjustable
Automatic wire feederYes
Wire diameter max.5.6 mm
Flux HopperYes
Flux recovery capabilityYes
Features1. 1 or 2 torches are usually built in.2. Multiple torches up to 4-5 also could be integrated into this machine based on qnty. of
welding seam and productivity.
3. Adjustable for various thickness
4. Precision longitudinal track for smooth travel
5. Change size automatically or manually
ApplicationsOur precision Circumferential Lathe Welder are most commonly used in tank production.
* High pressure type solar water heater tank
* Low-pressure type solar water heater tank
* Enamel tank for electrical water heater
* LPG cylinder
* LNG gas station
* Cryoease
* Storage tank
Range of working pieceThickness of working piece: 0.3mm-10mm
Dia. of working piece: 200mm-2500mm
Custom Designed
For any welders we fabricate and install, we can incorporate the controls system necessary. We program and wire electrical
controls such as:
* Programmable Logic Controllers (PLCs)
* Standard Push Button Controls
* Emergency Stop Buttons
* Safety Sensors
* Audiovisual Alarms
* Data Acquisition
We use predominantly Allen-Bradley PLCs with touch-screen or panel view displays but we will incorporate any brand or type of controls our customers specify

Fabricated Steel Welding Shield LPG Cylinder Welding Line Wire Diameter 5.6mm 0

What Service Do We Provide?

Pre-sales Service: Customized design of the overall production line scheme according to customer site, environment, output, budget, and product requirements
On-sale Service: Tracking the manufacturing progress of the whole line of equipment, quality control, product proofing and trial production
After-Sales Service: Equipment installation, testing, training, project acceptance
Maintenance Service: Regular inspection and maintenance of the entire line, providing genuine accessories, 24-hour online service



Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.

Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.

Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

We need to know following information to quote you correct machines:
1. Technical Drawing of the cylinders you want to make?
2. What size of cylinder you want to produce?(such as 6kg, 12kg)
3. What diameter and thickness of the cylinder you want to make?
4. Are you new in this area or you already have some machines in the workshop?
5. Capacity you require, i.e. how many pieces and sizes you want to make per day?
