460-540mm LPG Cylinder Bottom Ring Production Line DeCoiler
  • 460-540mm LPG Cylinder Bottom Ring Production Line DeCoiler

460-540mm LPG Cylinder Bottom Ring Production Line DeCoiler

Place of Origin CHINA
Brand Name OEM
Certification CE ISO
Product Details
Product Name:
De-Coiler LPG Cylinder Bottom Ring Production Line
Coil Inner Diameter Range:
460-540 Mm (standard)
Max Coil Outer Diameter:
1400 Mm
Max. Coil Weight:
6.000 Kg
Max. Stock Weight:
1200 Mm
Application:
LPG Cylinder
High Light:

460mm LPG Cylinder Bottom Ring Production Line

,

PG Cylinder Bottom Ring Production Line DeCoiler

,

540mm LPG Cylinder Bottom Ring Production Line

Product Description

460-540 mm (standard) LPG Cylinder Bottom Ring Production Line De-Coiler



An LPG cylinder bottom ring production line is an industrial process used to manufacture the bottom rings of LPG cylinders. The bottom ring is an essential component of the LPG cylinder, providing support and stability to the cylinder when it is in use.

The production line typically consists of several machines and processes that work together to manufacture the bottom rings. These machines may include a steel strip slitting machine, a roll forming machine, a welding machine, and a trimming machine.

The production process typically begins with the steel strip slitting machine, which cuts the steel strip into the appropriate width and length for the bottom ring. The strip is then fed into the roll forming machine, which shapes the strip into a circular form.



In LPG Cylinder Production it is more efficient to unreel sheet material from Decoiler for a fast, efficient and smooth operation.



A typical De-Coiler has following properties (Depending on the customer request properties can be chosen differently):



Max. Coil Weight: 6.000 kg
Max. stock Weight: 1200 mm
Max Coil outer diameter: 1400 mm
Coil inner diameter range: 460-540 mm (standard)



Features 1. 1 or 2 torches are usually built in.2. Multiple torches up to 4-5 also could be integrated into this machine based on qnty. of
welding seam and productivity.
3. Adjustable for various thickness
4. Precision longitudinal track for smooth travel
5. Change size automatically or manually
Applications Our precision Circumferential Lathe Welder are most commonly used in tank production.
* High pressure type solar water heater tank
* Low-pressure type solar water heater tank
* Enamel tank for electrical water heater
* LPG cylinder
* LNG gas station
* Cryoease
* Storage tank
Range of working piece Thickness of working piece: 0.3mm-10mm
Dia. of working piece: 200mm-2500mm
Custom Designed
For any welders we fabricate and install, we can incorporate the controls system necessary. We program and wire electrical
controls such as:
* Programmable Logic Controllers (PLCs)
* Standard Push Button Controls
* Emergency Stop Buttons
* Safety Sensors
* Audiovisual Alarms
* Data Acquisition

We use predominantly Allen-Bradley PLCs with touch-screen or panel view displays but we will incorporate any brand or type of controls our customers specify

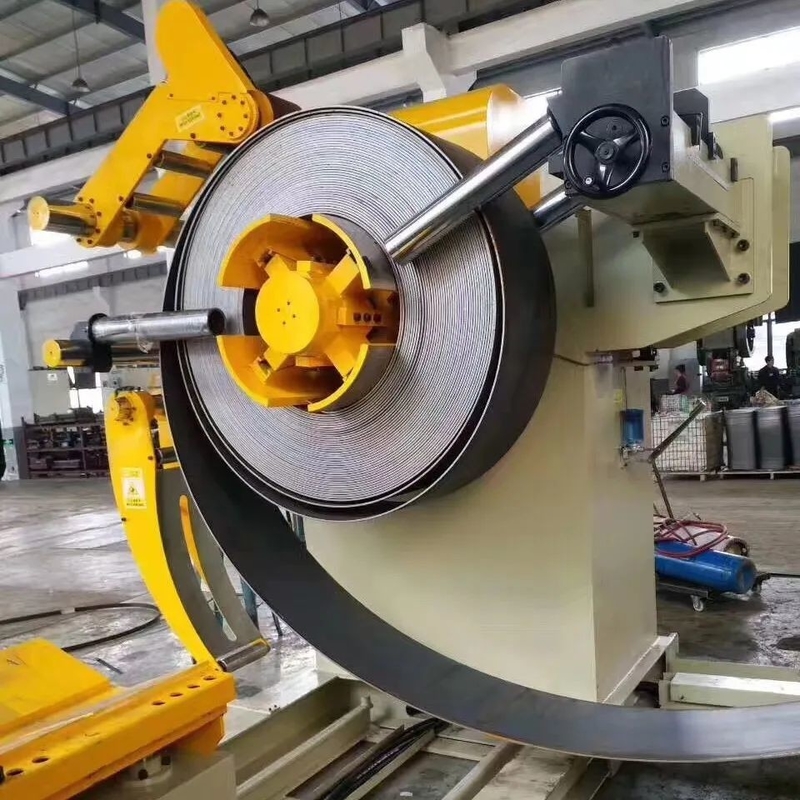

460-540mm LPG Cylinder Bottom Ring Production Line DeCoiler 0



What Service Do We Provide?

Pre-sales Service: Customized design of the overall production line scheme according to customer site, environment, output, budget, and product requirements
On-sale Service: Tracking the manufacturing progress of the whole line of equipment, quality control, product proofing and trial production
After-Sales Service: Equipment installation, testing, training, project acceptance
Maintenance Service: Regular inspection and maintenance of the entire line, providing genuine accessories, 24-hour online service





FAQ
Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.

Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.

Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

We need to know following information to quote you correct machines:
1. Technical Drawing of the cylinders you want to make?
2. What size of cylinder you want to produce?(such as 6kg, 12kg)
3. What diameter and thickness of the cylinder you want to make?
4. Are you new in this area or you already have some machines in the workshop?
5. Capacity you require, i.e. how many pieces and sizes you want to make per day?
