4mm LPG Base Winding Machine LPG Cylinder Production Line 2.2kW
  • 4mm LPG Base Winding Machine LPG Cylinder Production Line 2.2kW

4mm LPG Base Winding Machine LPG Cylinder Production Line 2.2kW

Place of Origin CHINA
Brand Name OEM
Certification CE ISO
Product Details
Product Name:
Base Winding Machine
Motor Power:
Loading & Unloading:
Max. Strip Thickness:
4 Mm
Complete (by Trained Operator)
Rolling Operation:
High Light:

LPG Base Winding LPG Cylinder Production Line


4mm LPG Base Winding Machine


LPG Base Winding Machine 2.2kW

Product Description

Max. Strip Thickness 4 Mm LPG Base Winding Machine 200-350 Mm


An LPG (liquefied petroleum gas) base winding machine is a type of industrial machine used in the production of LPG cylinders. The machine is designed to wind steel strips around a mandrel in order to create the base of the LPG cylinder.

The base winding machine typically consists of a rotating mandrel, around which the steel strip is wound. The machine also includes a strip feeding mechanism that feeds the steel strip onto the mandrel, as well as a welding mechanism that joins the ends of the strip together to form a continuous cylinder.

The LPG base winding machine is an important component of the overall LPG cylinder production process, and is typically used in conjunction with other machines such as a body welding machine and a necking machine. Together, these machines enable the production of LPG cylinders that are safe and reliable for use in a variety of applications.


Properties of the Guard Ring Roll Round Machine
(Note: According to the customer request, properties will change)

Max. strip thickness

4 mm

Max. strip width

200 mm

Bending diameter range

200-350 mm

Motor power

2.2 kW

Loading & Unloading



Complete (by trained operator)

Rolling Operation



1. 1 or 2 torches are usually built in.2. Multiple torches up to 4-5 also could be integrated into this machine based on qnty. of
welding seam and productivity.
3. Adjustable for various thickness
4. Precision longitudinal track for smooth travel
5. Change size automatically or manually
Our precision Circumferential Lathe Welder are most commonly used in tank production.
* High pressure type solar water heater tank
* Low-pressure type solar water heater tank
* Enamel tank for electrical water heater
* LPG cylinder
* LNG gas station
* Cryoease
* Storage tank
Range of working piece
Thickness of working piece: 0.3mm-10mm
Dia. of working piece: 200mm-2500mm
Custom Designed
For any welders we fabricate and install, we can incorporate the controls system necessary. We program and wire electrical
controls such as:
* Programmable Logic Controllers (PLCs)
* Standard Push Button Controls
* Emergency Stop Buttons
* Safety Sensors
* Audiovisual Alarms
* Data Acquisition

We use predominantly Allen-Bradley PLCs with touch-screen or panel view displays but we will incorporate any brand or type of controls our customers specify

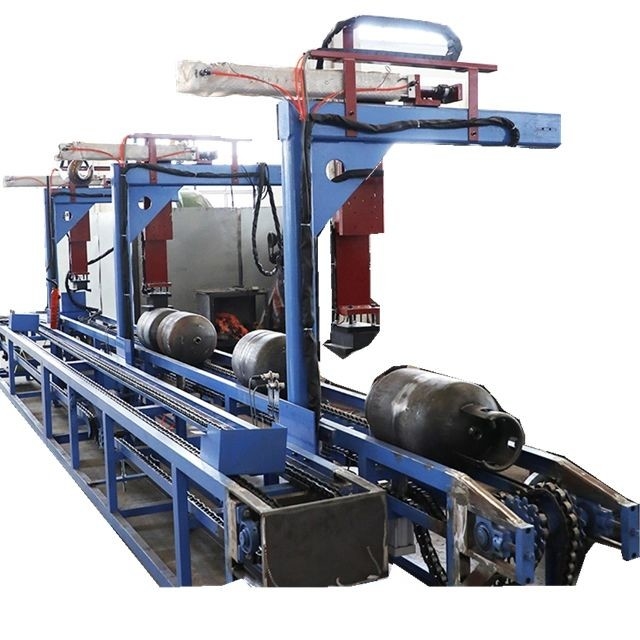

4mm LPG Base Winding Machine LPG Cylinder Production Line 2.2kW 0


What Service Do We Provide?

Pre-sales Service: Customized design of the overall production line scheme according to customer site, environment, output, budget, and product requirements
On-sale Service: Tracking the manufacturing progress of the whole line of equipment, quality control, product proofing and trial production
After-Sales Service: Equipment installation, testing, training, project acceptance
Maintenance Service: Regular inspection and maintenance of the entire line, providing genuine accessories, 24-hour online service



Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.

Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.

Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

We need to know following information to quote you correct machines:
1. Technical Drawing of the cylinders you want to make?
2. What size of cylinder you want to produce?(such as 6kg, 12kg)
3. What diameter and thickness of the cylinder you want to make?
4. Are you new in this area or you already have some machines in the workshop?
5. Capacity you require, i.e. how many pieces and sizes you want to make per day?
