Welding Shield LPG Cylinder Welding Line Horizontal Fabricated Steel
  • Welding Shield LPG Cylinder Welding Line Horizontal Fabricated Steel

Welding Shield LPG Cylinder Welding Line Horizontal Fabricated Steel

Place of Origin CHINA
Brand Name OEM
Certification CE ISO
Product Details
Product Name:
Welding Shield LPG Cylinder Welding Line
Welding Automat Structure:
Fabricated Steel
LPG Cylinder Halves Position In Weld Automat:
Weld Automat Working Style:
Rotating Halves Stationary Welding Head
Loading And Unloading Of Halves:
Manual By Operator
Wire Diameter Max.:
High Light:

Welding Shield LPG Cylinder Welding Line


LPG Cylinder Welding Line Horizontal Fabricated Steel


5.6mm LPG Cylinder Welding Line

Product Description

Welding Shield LPG Cylinder Welding Line Horizontal Fabricated Steel
LPG Cylinder body generally consists of two half cylinder welded around the center. For LPG Cylinders where the height of the cylinder is much more than the diameter of the cylinder one metal sheet rolled to a cylinder shape, welded in the longitudinal, then two lids are welded on the top and on the bottom of the cylinder.
Depending on the LPG Cylinder dimensions, the country where LPG Cylinder will be used and usage area of the LPG cylinder, welding location of the cylinder can change in order to resist to the desired pressure levels.
Body of the LPG Cylinder must be welded as one piece since it is important to maintain consistent welding in the joints. Besides the body welding, Guard Ring and Body Ring contain much more complex welding operations, such as pipe-to-plate and plate-to-body welding. However in pipe-to-plate and plate-to-body welding, there are gaps between the plates and it is necessary to design welding apparatus for just that welding operation. ROK Teknik designs welding apparatus for all kind of LPG Cylinder welding operations and for complete LPG Cylinder Welding Line.
LPG Cylinder Body Welding Machine

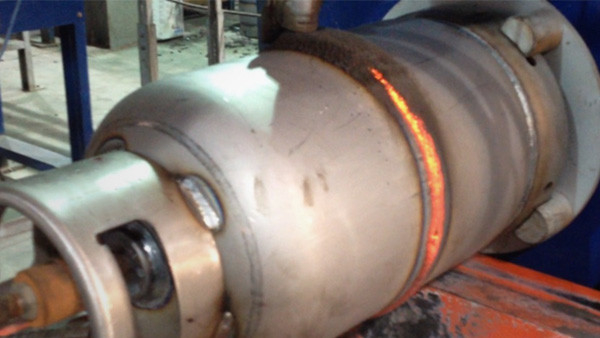

The LPG Cylinder Body Welding machine is a submerged arc welding (SAW) machine composed of welding automat and welding power pack. The welding automat holds the upper and lower cylinder halves horizontally and rotates them for the fixed welding head to weld. The features of the LPG Cylinder Body Welding Machine are:

LPG Cylinder Body Welding Machine Properties

Welding MethodSubmerged Arc Welding (SAW)
Welding Automat StructureFabricated Steel
LPG cylinder halves position in Weld AutomatHorizontal
Weld automat working styleRotating halves stationary welding head
Loading and unloading of halvesManual by operator
Welding OperationAutomatic by operator initiation
Halves clamping meansPneumatic cylinder
Welding Head Linear MovementYes
Halves rotation byElectric motor drive
Rotation SpeedElectronically Adjustable
Overlap of Weld SeamAdjustable
Automatic wire feederYes
Wire diameter max.5.6 mm
Flux HopperYes
Flux recovery capabilityYes
Features1. 1 or 2 torches are usually built in.2. Multiple torches up to 4-5 also could be integrated into this machine based on qnty. of
welding seam and productivity.
3. Adjustable for various thickness
4. Precision longitudinal track for smooth travel
5. Change size automatically or manually
ApplicationsOur precision Circumferential Lathe Welder are most commonly used in tank production.
* High pressure type solar water heater tank
* Low-pressure type solar water heater tank
* Enamel tank for electrical water heater
* LPG cylinder
* LNG gas station
* Cryoease
* Storage tank
Range of working pieceThickness of working piece: 0.3mm-10mm
Dia. of working piece: 200mm-2500mm
Custom Designed
For any welders we fabricate and install, we can incorporate the controls system necessary. We program and wire electrical
controls such as:
* Programmable Logic Controllers (PLCs)
* Standard Push Button Controls
* Emergency Stop Buttons
* Safety Sensors
* Audiovisual Alarms
* Data Acquisition
We use predominantly Allen-Bradley PLCs with touch-screen or panel view displays but we will incorporate any brand or type of controls our customers specify

Welding Shield LPG Cylinder Welding Line Horizontal Fabricated Steel 0

What Service Do We Provide?

Pre-sales Service: Customized design of the overall production line scheme according to customer site, environment, output, budget, and product requirements
On-sale Service: Tracking the manufacturing progress of the whole line of equipment, quality control, product proofing and trial production
After-Sales Service: Equipment installation, testing, training, project acceptance
Maintenance Service: Regular inspection and maintenance of the entire line, providing genuine accessories, 24-hour online service



Q: What size of LPG cylinder your machine can produce?
A: 6kg, 12kg,15kgs and 50kgs LPG cylinder for cooking and other size according customers' requirement.

Q: Can you design machines according LPG cylinder technical drawing?
A: Sure, please send your technical drawing to us.

Q: What are the benefits to choose your machines?
A: Our machines are strong and reliable for long term industrial manufacturing

We need to know following information to quote you correct machines:
1. Technical Drawing of the cylinders you want to make?
2. What size of cylinder you want to produce?(such as 6kg, 12kg)
3. What diameter and thickness of the cylinder you want to make?
4. Are you new in this area or you already have some machines in the workshop?
5. Capacity you require, i.e. how many pieces and sizes you want to make per day?
